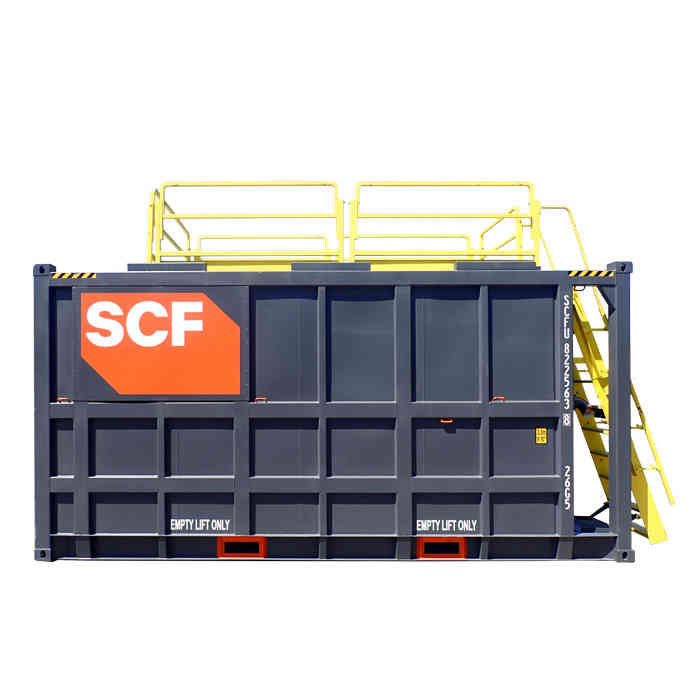

SCF's 20ft Bulk Liquid Storage Tank is a versatile on site solution for both large and small projects, and anything in between. The small stackable footprint of the unit allows increased flexibility and ease of transport on both rail and road.

Key Features

  • Inlet connections
  • 4 inch bauer coupling with butterfly valve
  • 4 inch camlock coupling with butterfly valve
  • Forklift pockets

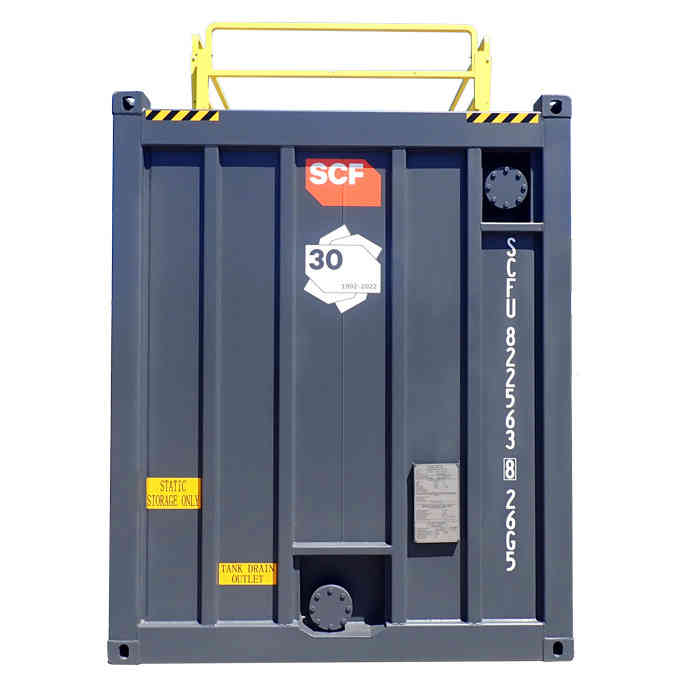

  • Front and rear drain valves
  • Toolbox for connection storage

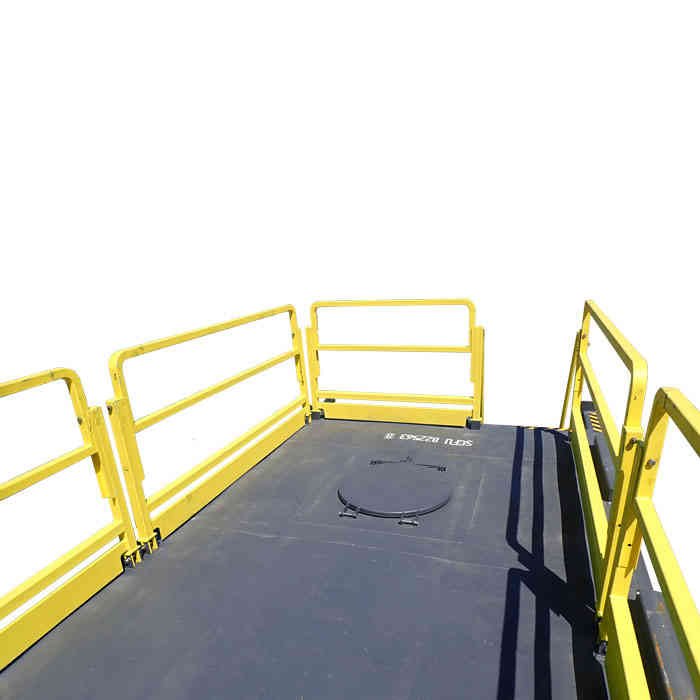

  • AS1657 compliant stair and gantry system
  • 32,000 L capacity

Product Details

SCF's 20ft Bulk Liquid Storage Tank is right at home on sites with space limitations, providing ample bulk liquid storage. Need something bigger? They can also be stacked and can connected in a farm configuration to increase storage capacity without compromising footprint.

Our tanks are Skid-mounted for speedy, cost effective mobilisation, and their forklift pockets make on site movements a breeze.

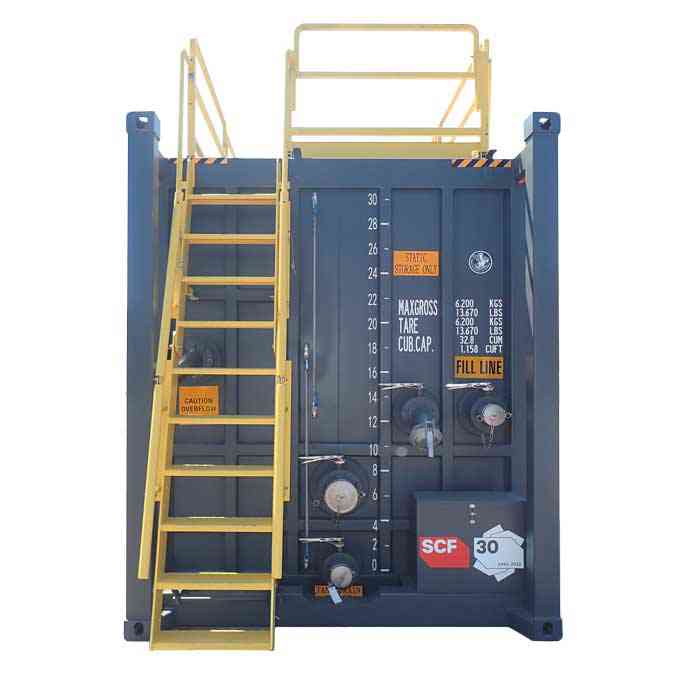

Filling ratios can be easily and safely monitored while the units are in situ thanks to external level gauges that are fitted on all our liquid storage units.

Put it all together and you have a versatile 32,000 L solution for on-site static liquid storage.

Options

  • Internal mixing lines

  • Galvanised steel

  • Mounting points for agitators

  • Various linings for acid applications

20ft Bulk Liquid Storage Tank Dimensions, Volume and Weight

Specifications may vary. The following external dimensions assume the gantry is not in the raised position.

Volume
Litres 31,500
32

External
Length (mm) 6,058
Width (mm) 2,438
Height (mm) 2,997
Weight
Tare (kg) 6,200
Payload (kg) 32,000
MGW (kg) 6,200

How is this container delivered?

SCF Shipping Containers - Delivery Method - Hiab Crane

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck's cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.
